Gravador ACE USB (PICKIT2) para Microcontroladores PIC com ZIF

PICKIT2 - Gravador ACE USB para Microcontroladores PIC - ACEPIC (ZIF)

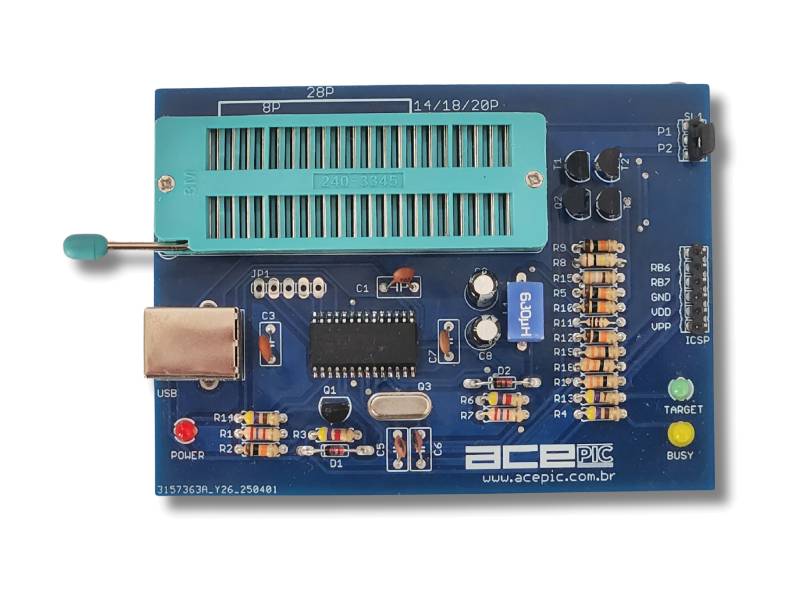

O Gravador USB da ACEPIC  programa uma grande quantidade de Microcontroladores PIC das Famílias 10F, 12F, 16F, 18F, 24F e dsPICs. O Gravador é destinado a estudantes, hobbistas e profissionais na área de desenvolvimento de projetos com Microcontroladores PIC.

Utilizando o soquete de gravação ZIF (acompanha o produto) pode-se programar diretamente Microcontroladores de 8, 18, 28 e 40 pinos ou fazer a programação do dispositivo no modo ICSP (In Circuit Serial Programming), assim, permitindo a Programação de Microcontroladores com outros tipos de encapsulamento e com isso, reduzindo o tempo de desenvolvimento.

O software de programação é bastante simples de utilizar e pode ser baixado através do link informado ao usuário quando da aquisição do Gravador.

Observação:-

O Software de programação é desenvolvido para a plataforma Windows (Funciona também no Windows 11). Sendo assim, o software não possui versão para outras plataformas como o MAC e o Linux

Especificações:

-Conexão a qualquer porta USB em notebooks e desktops;
-Não utiliza fonte de alimentação externa;
-Sinalização de gravação / depuração por LEDs;
-Software de programação;

Microcontroladores Suportados

# indica os Microcontroladores que requerem no mínimo 4,75V de alimentação para programação. O Gravador ACE USB não é capaz de gerar tensão suficiente, assim é necessário uma fonte de alimentação externa.

Baseline Devices

PIC10F200 PIC10F202 PIC10F204 PIC10F206 PIC10F220 PIC10F222 PIC12F508 PIC12F509 PIC12F510 PIC12F519
PIC16F505 PIC16F506 PIC16F526 PIC16F54 PIC16F57 PIC16F59

Midrange/Standard Devices

>> Todas as versões ‘LF’ são suportadas
PIC12F609 PIC12HV609 PIC12F615 PIC12HV615 PIC12F629 PIC12F635# PIC12F675 PIC12F683# PIC16F610
PIC16HV610 PIC16F616 PIC16HV616 PIC16F627 PIC16F628 PIC16F639 PIC16F627A PIC16F628A PIC16F648A
PIC16F630 PIC16F631 PIC16F636# PIC16F676 PIC16F677 PIC16F684# PIC16F685# PIC16F687# PIC16F688#
PIC16F689# PIC16F690# PIC16F72 PIC16F73 PIC16F74 PIC16F76 PIC16F77 PIC16F716 PIC16F737
PIC16F747 PIC16F767 PIC16F777 PIC16F785 PIC16HV785 PIC16F84A PIC16F87# PIC16F88# PIC16F818#
PIC16F819# PIC16F870 PIC16F871 PIC16F872 PIC16F873 PIC16F874 PIC16F876 PIC16F877 PIC16F873A
PIC16F874A PIC16F876A PIC16F877A PIC16F882# PIC16F883# PIC16F884# PIC16F886# PIC16F887# PIC16F913#
PIC16F914# PIC16F916# PIC16F917# PIC16F946#

Midrange/1.8V Min Devices

PIC16F722 PIC16LF722 PIC16F723 PIC16LF723 PIC16F724 PIC16LF724 PIC16F726 PIC16LF726 PIC16F727
PIC16LF727 PIC16F1933 PIC16F1934 PIC16F1936 PIC16F1937 PIC16F1938 PIC16F1939 PIC16LF1933 PIC16LF1934
PIC16LF1936 PIC16LF1937 PIC16LF1938 PIC16LF1939

PIC18F Devices

>> Todas as versões ‘LF’ são suportadas
PIC18F242 PIC18F252 PIC18F442 PIC18F452 PIC18F248 PIC18F258 PIC18F448 PIC18F458 PIC18F1220
PIC18F1320 PIC18F2220 PIC18F1230 PIC18F1330 PIC18F1330-ICD PIC18F2221 PIC18F2320 PIC18F2321
PIC18F2331 PIC18F2410 PIC18F2420 PIC18F2423 PIC18F2431 PIC18F2450 PIC18F2455 PIC18F2458 PIC18F2480
PIC18F2510 PIC18F2515 PIC18F2520 PIC18F2523 PIC18F2525 PIC18F2550 PIC18F2553 PIC18F2580 PIC18F2585
PIC18F2610 PIC18F2620 PIC18F2680 PIC18F2682 PIC18F2685 PIC18F4220 PIC18F4221 PIC18F4320 PIC18F4321
PIC18F4331 PIC18F4410 PIC18F4420 PIC18F4423 PIC18F4431 PIC18F4450 PIC18F4455 PIC18F4458 PIC18F4480
PIC18F4510 PIC18F4515 PIC18F4520 PIC18F4523 PIC18F4525 PIC18F4550 PIC18F4553 PIC18F4580 PIC18F4585
PIC18F4610 PIC18F4620 PIC18F4680 PIC18F4682 PIC18F4685 PIC18F6310 PIC18F6390 PIC18F6393 PIC18F6410
PIC18F6490 PIC18F6493 PIC18F6520 PIC18F6525 PIC18F6527 PIC18F6585 PIC18F6620 PIC18F6621 PIC18F6622
PIC18F6627 PIC18F6628 PIC18F6680 PIC18F6720 PIC18F6722 PIC18F6723 PIC18F8310 PIC18F8390 PIC18F8393
PIC18F8410 PIC18F8490 PIC18F8493 PIC18F8520 PIC18F8525 PIC18F8527 PIC18F8585 PIC18F8620 PIC18F8621
PIC18F8622 PIC18F8627 PIC18F8628 PIC18F8680 PIC18F8720 PIC18F8722 PIC18F8723

PIC18F_J_ Devices

PIC18F24J10 PIC18LF24J10 PIC18F24J11 PIC18LF24J11 PIC18F24J50 PIC18LF24J50 PIC18F25J10 PIC18LF25J10
PIC18F25J11 PIC18LF25J11 PIC18F25J50 PIC18LF25J50 PIC18F26J11 PIC18LF26J11 PIC18F26J50 PIC18LF26J50
PIC18F44J10 PIC18LF44J10 PIC18F44J11 PIC18LF44J11 PIC18F44J50 PIC18LF44J50 PIC18F45J10 PIC18LF45J10
PIC18F45J11 PIC18LF45J11 PIC18F45J50 PIC18LF45J50 PIC18F46J11 PIC18LF46J11 PIC18F46J50 PIC18LF46J50
PIC18F63J11 PIC18F63J90 PIC18F64J11 PIC18F64J90 PIC18F65J10 PIC18F65J11 PIC18F65J15 PIC18F65J50
PIC18F65J90 PIC18F66J10 PIC18F66J11 PIC18F66J15 PIC18F66J16 PIC18F66J50 PIC18F66J55 PIC18F66J60
PIC18F66J65 PIC18F66J90 PIC18F67J10 PIC18F67J11 PIC18F67J50 PIC18F67J60 PIC18F67J90 PIC18F83J11
PIC18F83J90 PIC18F84J11 PIC18F84J90 PIC18F85J10 PIC18F85J11 PIC18F85J15 PIC18F85J50 PIC18F85J90
PIC18F86J10 PIC18F86J11 PIC18F86J15 PIC18F86J16 PIC18F86J50 PIC18F86J55 PIC18F86J60 PIC18F86J65
PIC18F86J90 PIC18F87J10 PIC18F87J11 PIC18F87J50 PIC18F87J60 PIC18F87J90 PIC18F96J60 PIC18F96J65
PIC18F97J60

PIC18F_K_ Devices

PIC18F13K22 PIC18LF13K22 PIC18F14K22 PIC18LF14K22 PIC18F13K50 PIC18LF13K50 PIC18F14K50 PIC18LF14K50
PIC18F14K50 PIC18F23K20 PIC18F24K20 PIC18F25K20 PIC18F26K20 PIC18F43K20 PIC18F44K20 PIC18F45K20
PIC18F46K20

PIC24 Devices

PIC24F04KA200 PIC24F04KA201 PIC24F08KA101 PIC24F08KA102 PIC24F16KA101 PIC24F16KA102

PIC24FJ16GA002 PIC24FJ16GA004
PIC24FJ32GA002 PIC24FJ32GA004
PIC24FJ32GA102 PIC24FJ32GA104
PIC24FJ48GA002 PIC24FJ48GA004
PIC24FJ64GA002 PIC24FJ64GA004
PIC24FJ64GA102 PIC24FJ64GA104

PIC24FJ64GA006 PIC24FJ64GA008 PIC24FJ64GA010
PIC24FJ96GA006 PIC24FJ96GA008 PIC24FJ96GA010
PIC24FJ128GA006 PIC24FJ128GA008 PIC24FJ128GA010
PIC24FJ128GA106 PIC24FJ128GA108 PIC24FJ128GA110
PIC24FJ192GA106 PIC24FJ192GA108 PIC24FJ192GA110
PIC24FJ256GA106 PIC24FJ256GA108 PIC24FJ256GA110

PIC24FJ32GB002 PIC24FJ32GB004
PIC24FJ64GB002 PIC24FJ64GB004

PIC24FJ64GB106 PIC24FJ64GB108 PIC24FJ64GB110
PIC24FJ128GB106 PIC24FJ128GB108 PIC24FJ128GB110
PIC24FJ192GB106 PIC24FJ192GB108 PIC24FJ192GB110
PIC24FJ256GB106 PIC24FJ256GB108 PIC24FJ256GB110

PIC24HJ12GP201 PIC24HJ12GP202
PIC24HJ16GP304
PIC24HJ32GP202 PIC24HJ32GP204
PIC24HJ32GP302 PIC24HJ32GP304
PIC24HJ64GP202 PIC24HJ64GP204
PIC24HJ64GP206 PIC24HJ64GP210
PIC24HJ64GP502
PIC24HJ64GP504 PIC24HJ64GP506 PIC24HJ64GP510
PIC24HJ128GP202 PIC24HJ128GP204
PIC24HJ128GP206 PIC24HJ128GP210
PIC24HJ128GP306 PIC24HJ128GP310
PIC24HJ128GP502 PIC24HJ128GP504
PIC24HJ128GP506 PIC24HJ128GP510
PIC24HJ256GP206 PIC24HJ256GP210 PIC24HJ256GP610

dsPIC33 Devices

dsPIC33FJ06GS101 dsPIC33FJ06GS102 dsPIC33FJ06GS202
dsPIC33FJ16GS402 dsPIC33FJ16GS404
dsPIC33FJ16GS502 dsPIC33FJ16GS504

dsPIC33FJ12GP201 dsPIC33FJ12GP202
dsPIC33FJ16GP304
dsPIC33FJ32GP202 dsPIC33FJ32GP204
dsPIC33FJ32GP302 dsPIC33FJ32GP304
dsPIC33FJ64GP202 dsPIC33FJ64GP204
dsPIC33FJ64GP206 dsPIC33FJ64GP306 dsPIC33FJ64GP310
dsPIC33FJ64GP706 dsPIC33FJ64GP708 dsPIC33FJ64GP710
dsPIC33FJ64GP802 dsPIC33FJ64GP804
dsPIC33FJ128GP202 dsPIC33FJ128GP204
dsPIC33FJ128GP206 dsPIC33FJ128GP306 dsPIC33FJ128GP310
dsPIC33FJ128GP706 dsPIC33FJ128GP708 dsPIC33FJ128GP710
dsPIC33FJ256GP506 dsPIC33FJ256GP510 dsPIC33FJ256GP710
dsPIC33FJ128GP802 dsPIC33FJ128GP804

dsPIC33FJ12MC201 dsPIC33FJ12MC202
dsPIC33FJ16MC304
dsPIC33FJ32MC202 dsPIC33FJ32MC204
dsPIC33FJ32MC302 dsPIC33FJ32MC304
dsPIC33FJ64MC202 dsPIC33FJ64MC204
dsPIC33FJ64MC506 dsPIC33FJ64MC508 dsPIC33FJ64MC510
dsPIC33FJ64MC706 dsPIC33FJ64MC710
dsPIC33FJ64MC802 dsPIC33FJ64MC804
dsPIC33FJ128MC202 dsPIC33FJ128MC204
dsPIC33FJ128MC506 dsPIC33FJ128MC510 dsPIC33FJ128MC706
dsPIC33FJ128MC708 dsPIC33FJ128MC710
dsPIC33FJ256MC510 dsPIC33FJ256MC710
dsPIC33FJ128MC802 dsPIC33FJ128MC804

dsPIC30 Devices

dsPIC30F2010 dsPIC30F2011 dsPIC30F2012
dsPIC30F3010 dsPIC30F3011 dsPIC30F3012
dsPIC30F3013 dsPIC30F3014
dsPIC30F4011 dsPIC30F4012 dsPIC30F4013
dsPIC30F5011^ dsPIC30F5013^ dsPIC30F5015
dsPIC30F5016
dsPIC30F6010A dsPIC30F6011A dsPIC30F6012A
dsPIC30F6013A dsPIC30F6014A dsPIC30F6015

dsPIC30 SMPS Devices

dsPIC30F1010
dsPIC30F2020 dsPIC30F2023

PIC32 Devices

PIC32MX320F032H PIC32MX320F064H PIC32MX320F128L
PIC32MX320F128H
PIC32MX340F128H PIC32MX340F128L
PIC32MX340F256H
PIC32MX340F512H
PIC32MX360F256L PIC32MX360F512L
PIC32MX420F032H
PIC32MX440F128L PIC32MX440F128H
PIC32MX440F256H PIC32MX440F512H
PIC32MX460F256L PIC32MX460F512L

Acompanha:

– Cabo ICSP
– Cabo USB
– Download de Manual, exemplos, esquema da placa e software para Programação do Microcontrolador.

Observação:

- Garantimos Download com arquivos de programas e exemplos de nossas Placas até 1 (um) ano após a descontinuidade da mesma.

Informações Adicionais:
************************************************************************************************************************
– Garantia: 6 Meses;
– Todos os nossos kits são testados antes do envio ao comprador.

************************************************************************************************************************
